Model: YTH-080
Main Parameters:
Temperature: 0℃/-20℃/-40℃/-70℃ ~ +150℃
Humidity: 20%～98% RH (lower humidity is optional)
Heat-up speed: average 3℃/min
Cool-down speed: average 1℃/min

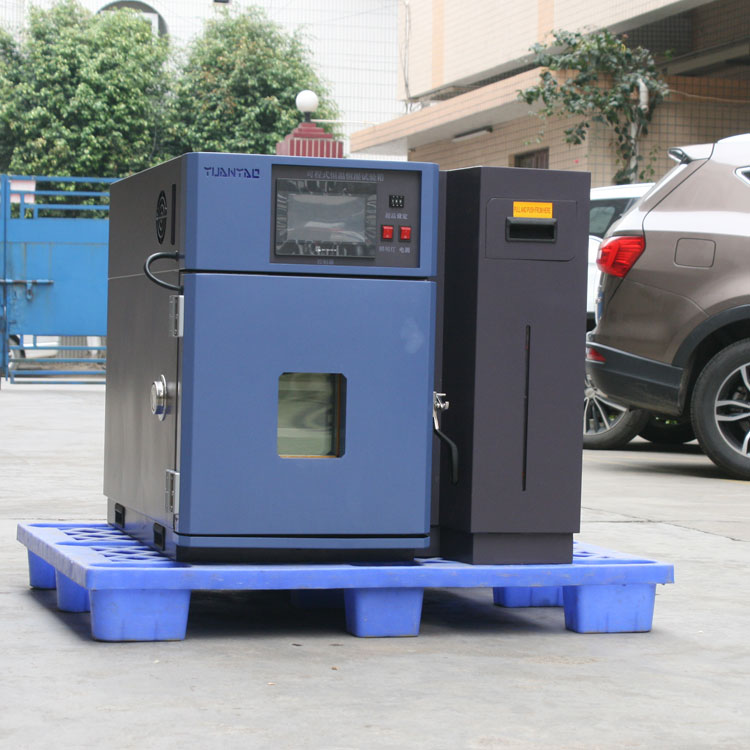

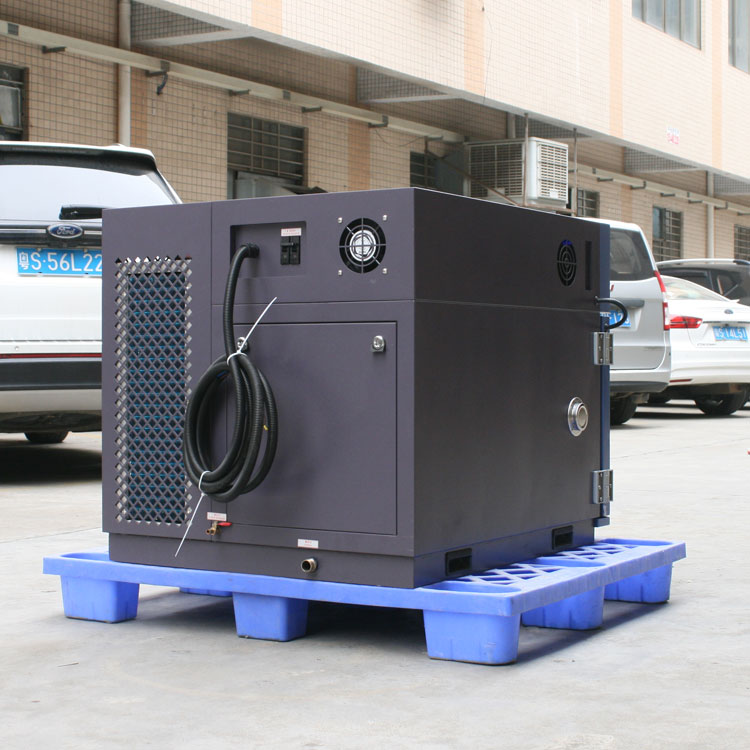

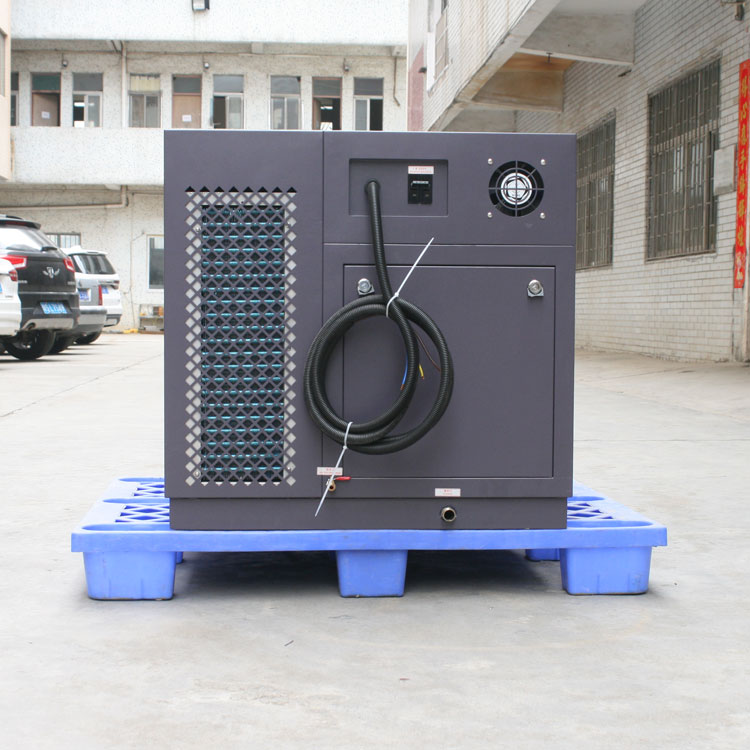

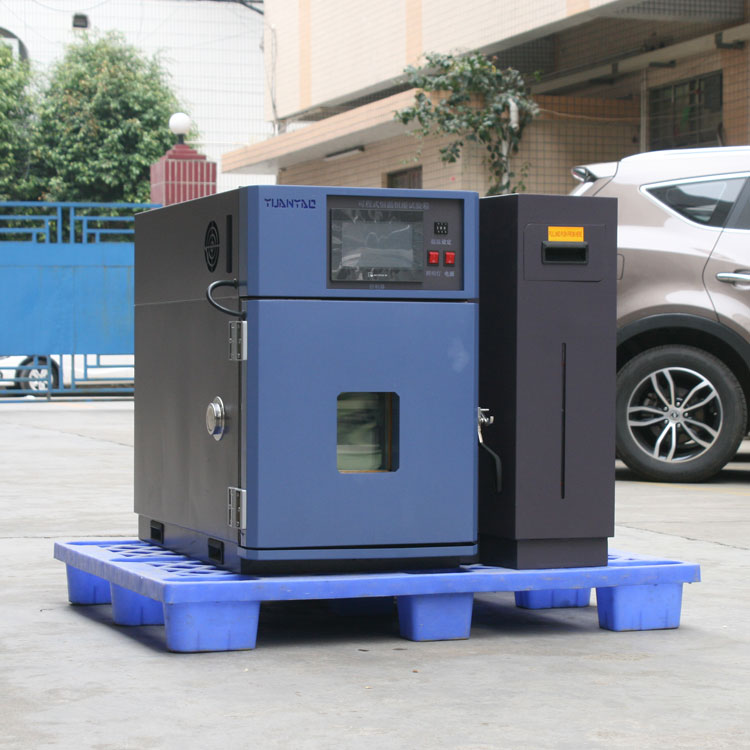

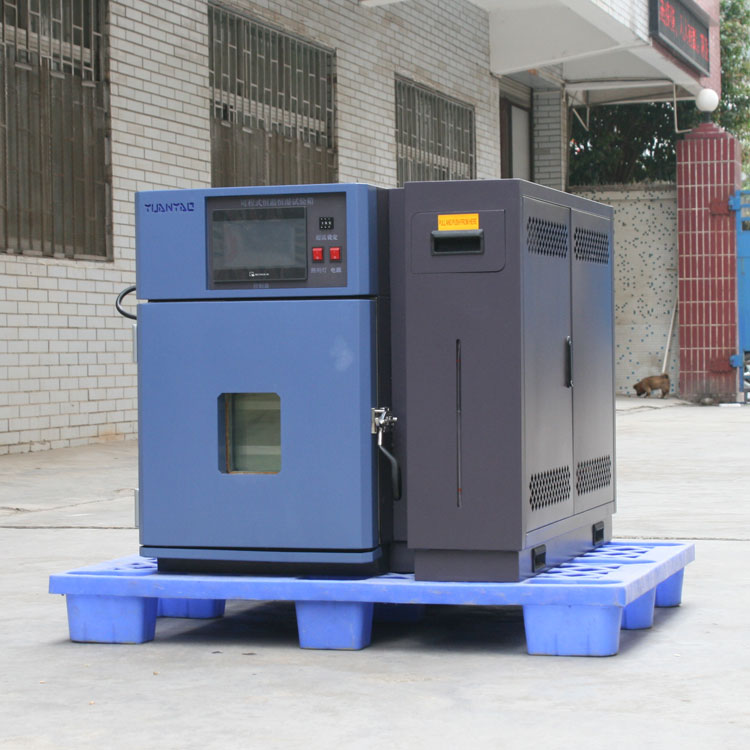

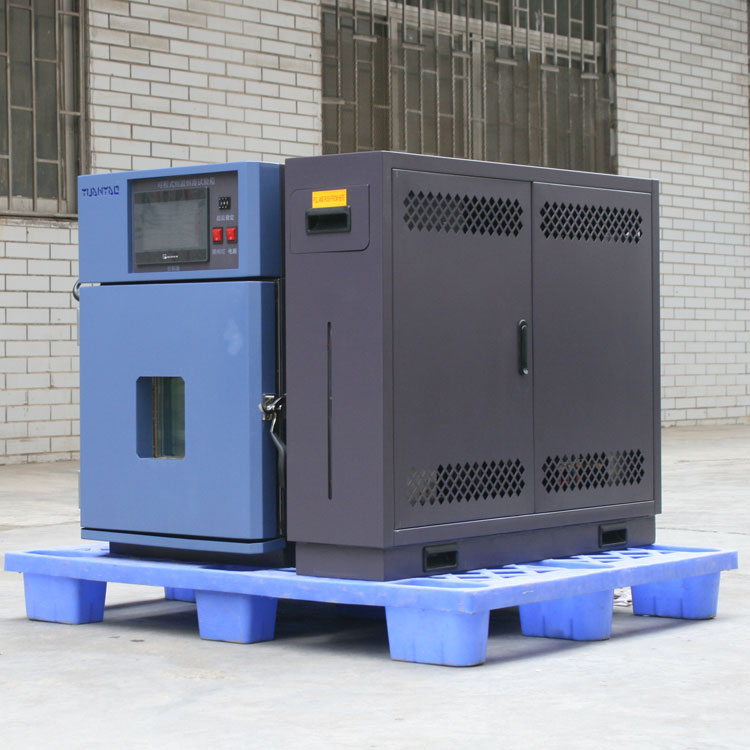

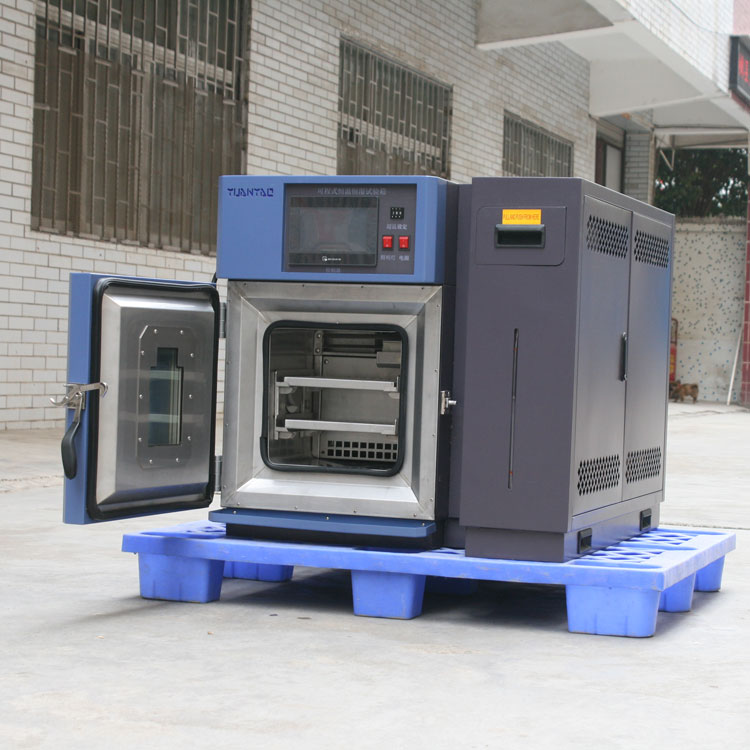

80l Desktop Type Climate Chamber is a kind of small environmental test chamber and can be used to test electronic, electrical, mobile phone, communication, instrument, vehicle, plastic product, metal and other products by simulating the test conditions of different environments such as high temperature, high humidity, high temperature, low humidity, low temperature and high humidity, low temperature and low humidity, and high temperature and low temperature.
As a small temperature chamber, the Benchtop type climate chamber is suitable for R & D testing of small products and laboratory use.
If you are looking for small climate chambers, small temperature chambers, small humidity chambers, or small environmental test chambers, 80l Desktop Type Climate Chamber is your ideal choice!
If you have any more questions about this small temperature chamber, welcome to contact us!
| Model No. | YTH-080 | ||||||
| Inner chamber size(cm) | 40×50×40 | ||||||
| Temperature range | -70℃，-60℃, -40℃, -20℃, 0℃~150℃，other temperature can be customized | ||||||
| Humidity range | 20%RH～98%RH(10%RH～98%RH 5%RH～98%RH)can be customized) | ||||||
| Temp.humi.fluctuation | ±0.3℃；±0.5%RH | ||||||
| Temp.humi.uniformity | ±2℃；±3%RH (empty load, 30 minutes after stablization) | ||||||
| Temp.humi.resolution | 0.01℃；0.1%RH | ||||||
| Heating&cooling time ℃/min | Heating rate 3℃/min, cooling rate 1℃/min(average rate, non-linear change) | ||||||
| Exterior chamber material | Cold-rolled plate + Powder coating | ||||||
| Interior chamber material | SUS#304 Stainless steel | ||||||
| Insulation material | PU | ||||||
| Circulation system | Centrifugal fan air circulation system | ||||||
| Heating system | SUS# Stainless steel high-speed heater | ||||||
| Humidification system | Electrothermal steam humidification | ||||||
| Dehumidifying | ADP critical dew point cooling / dehumidifying method | ||||||
| Refrigeration system | Compressor + Finned evaporator + Air(Water) cooled condenser | ||||||
| Controlling system | Touch screen controller+SSR+PID | ||||||
| Other components | Vacuum glass observation window | ||||||
| Test hole (50mm) | |||||||
| Control status indicator | |||||||
| Interior light | |||||||
| Loading shelf (2pcs, height adjustable) | |||||||
| Safety protection device | Overheat protection circuit breaker | ||||||
| Humidification system overheat protection | |||||||
| Compressor overload protection | |||||||
| Control system overload protection | |||||||
| Overload indicator | |||||||
| Phase sequence protection | |||||||
| Water shortage protection | |||||||
| High voltage and low voltage protection | |||||||
| Over-temperature protection | |||||||
| Water supply delay protection | |||||||
| Fan overcurrent protection | |||||||
| Power supply | AC 1Ψ 220V 50Hz | ||||||
| Customization service | Non-standard or special requirements can be customized. | ||||||
Touch screen type controller, easy to operate
Flexible water tank with water level display
RS-232 communication port to connect a computer for control and monitor
Custom service on design
Small capacity, easy to move, no need too much space.
